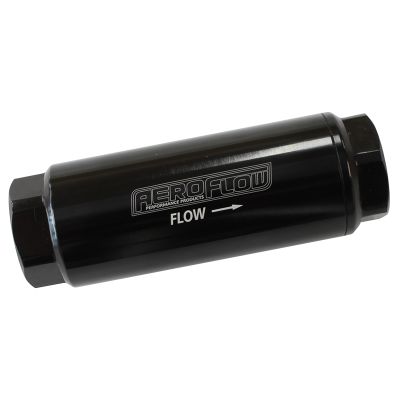

Aeroflow 60 Micron Pro Filter - Black -8AN ORB Inlet/Outlet Ports, 3-1/2" x 1-1/4"

When excellent filtration is the key to fuel system performance Aeroflow's Pro Filters provide an inexpensive insurance policy to protect your investment. For 200 - 2700 plus HP applications, these pro filter assemblies offer unmatched flow for any horsepower and application. All pro filters feature a stainless-steel reusable and washable filter element for ease of maintenance and safe to use with all exotic fuels such as E85 and methanol. A large variety of filter element micron ratings can be chosen and replaced if required, from 10 micron up to 100 micron allowing for pre-pump and post-pump filtration without impeding flow rates.

Inside the CNC-machined 6061-T6 aircraft aluminium outside body is an internal magnet to catch fine particles for that much needed protection. Each body is anodized and finished in either blue, black or silver colour options. All pro filter assemblies feature an O-ring for positive sealing in high pressure applications. Mounting brackets are available and sold separately to mount in-car or under-car fuel setups along with different body sizes depending on space and requirements.

Dimensions
Overall Length - 89mm (3-1/2”)
Overall Diameter - 31.7mm (1-1/4”)
Ports - Female -8ORB

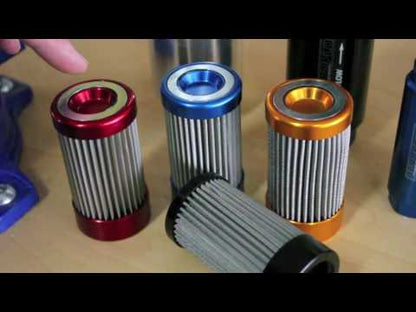

Filter Elements To Suit:
AF59-2421 10 Micron (Red)
AF59-2042 40 Micron (Blue)
AF59-2062 60 Micron (Black)
AF59-2041 100 Micron (Gold)

Replacement Body O-Ring - AF59-2018
Replacement Filter Element O-Ring - AF59-2040
Replacement Spring - AF59-2035
