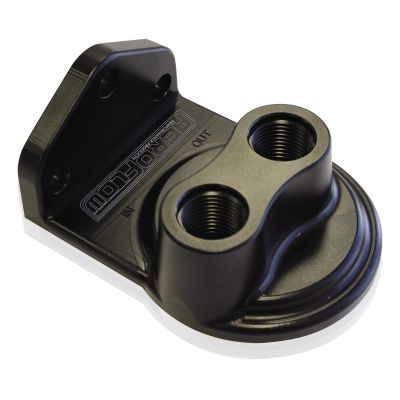

Billet Remote Oil Filter Head

Move your oil filter to new location with Aeroflow Performance universal Billet Remote Oil Filter head. This is great for mounting an engine oil filter away from your engine, to make oil filter changes easier or where space is limited in the engine bay. Two labelled inlet and outlet -8AN ORB ports are provided for plumbing the engine oil to and from the oil filter remote mount. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Integrated one piece bracket which can be used to make installation easier in various universal applications.

This product has a 3/4”-16 filter thread insert supplied with kit. Which can also be purchased separately (AF59-2075) if required.

Oil filters designed to work with this product are either:

AF2296-3001 (RYCO Z9) large oil filter with internal bypass.

AF2296-2008 (RYCO Z145A) small oil filter with no internal bypass.

Note: Other oil filters may be used if the sealing O-ring on the filters provided above have the same inner and outer dimensions to allow the oil filter to seal

WARNING: This is only one component required to complete your oil filter relocation. Other components such as oil filters, rubber hoses, fittings etc are all sold separately.

Dimensions:

Overall Length - 101mm
Overall Width - 77.95mm

3/8” (9.5mm) mounting holes

Centre to Centre of -8ORB ports - 36.75 mm
