Aeroflow

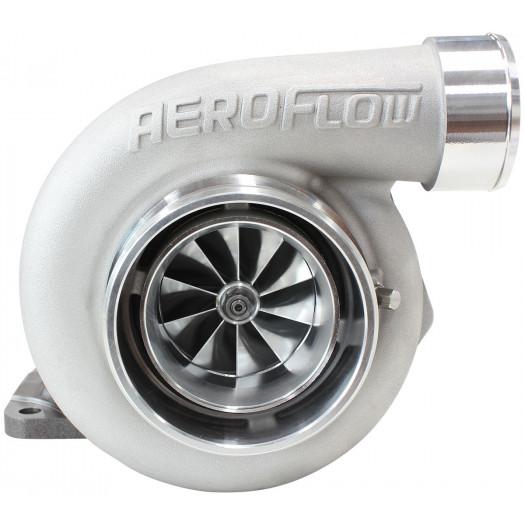

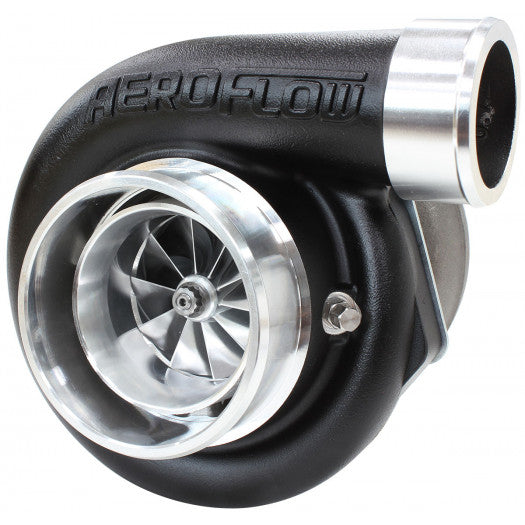

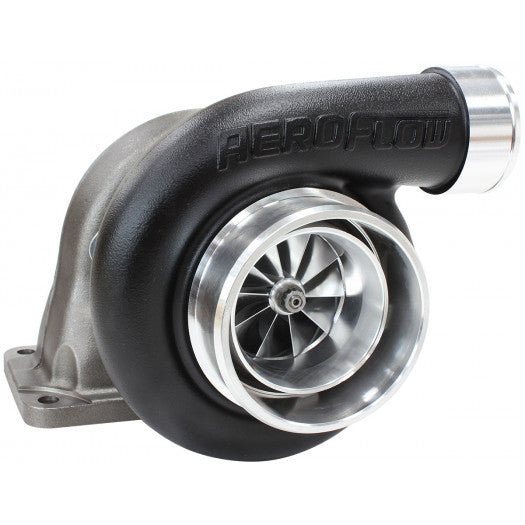

BOOSTED 6662 T4 .82 Turbocharger 900HP
BOOSTED 6662 T4 .82 Turbocharger 900HP
Regular price
$1,525.24
Regular price
Sale price
$1,525.24
Unit price
/
per
Tax included.
Couldn't load pickup availability
BOOSTED 6662 T4 Turbocharger Specifications
Recommended horsepower rating: 450-900HP
Recommended engine displacement: 2.0L to 4.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 66mm
Exducer: 82mm
Extended Tip: 87.5mm
A/R: 0.72
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62.3mm
A/R: 0.82
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
Recommended horsepower rating: 450-900HP
Recommended engine displacement: 2.0L to 4.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 66mm
Exducer: 82mm
Extended Tip: 87.5mm
A/R: 0.72
Compressor Inlet: 4" Slip fit
Compressor Outlet: 2.5" Slip fit
Turbine Specifications
Inducer: 68mm
Exducer: 62.3mm
A/R: 0.82
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
