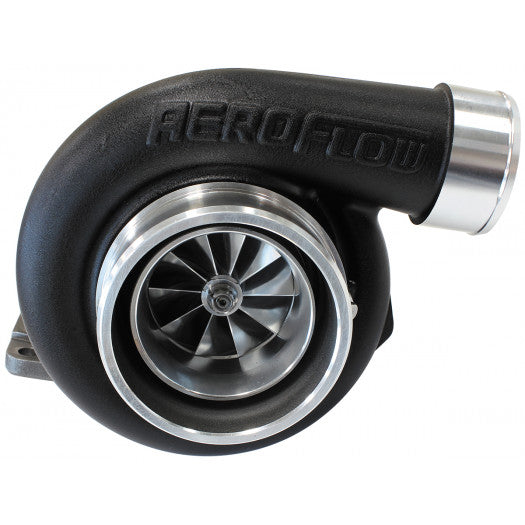

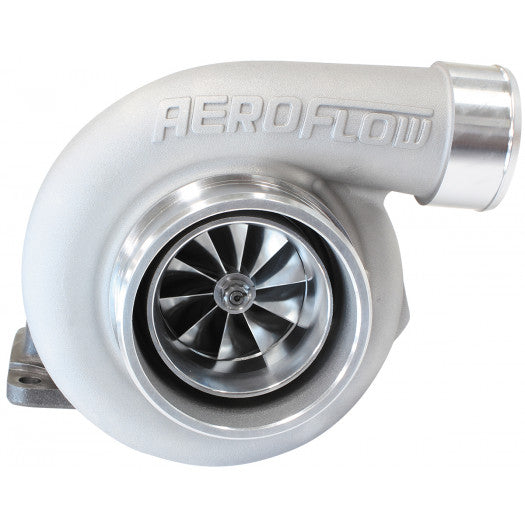

BOOSTED 6662 .82 Turbocharger 900HP T3

External Wastegate, T3 Inlet Flange, V-Band Exhaust Flange

BOOSTED 6362 .82 Turbocharger Specifications

Recommended horsepower rating: 450-850HP
Recommended engine displacement: 2.0L to 4.5L

• Billet aluminium compressor wheel
• Ported shroud compressor housing cover
• 1/8" NPT Speed sensor port included in compressor cover
• External wastegate sold seperately
• Inlet flange single layer gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit
• Turbine inlet gasket sold seperately AF9557-0002
• Recommended turbo drain adapter AF463-01 or AF463-05
• M14x1.5mm coolant fittings sold seperately
• V-band sold seperately AF8080-1000

Compressor
Inducer: 63.5mm
Exducer: 84mm
Extended Tip: 87.5mm
A/R: 0.72

Turbine
Inducer: 68mm
Exducer: 62.3mm
A/R: 0.82

Compressor Inlet: 4" Slip fit
Compressor Outlet: 2-1/2" Slip fit
Turbine Inlet Flange: T3
Turbine Outlet Flange: V-band (3")
Wastegate: External wastegate sold seperately
