Haltech UC-10 DIGITAL DASH

Haltech UC-10 DIGITAL DASH

$2,950.00
$2,999.00 $2,950.00
Sale Sold out
Tax included.

Ever since we released our first colour dash, the iC-7, a few years ago, you have been asking us to make another one. “We just want a nice big, clear screen without the buttons, shift lights, or other distractions,” you said. Well, we heard you loud and clear, so today we’re very happy to reveal the latest in our digital dash line-up, the big, loud and clear uC-10.

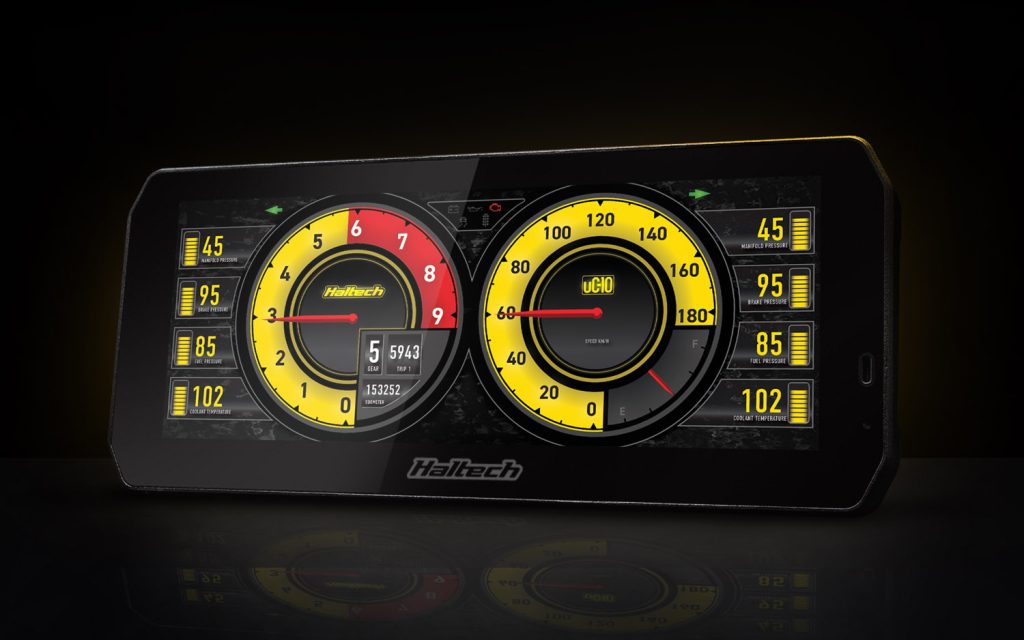

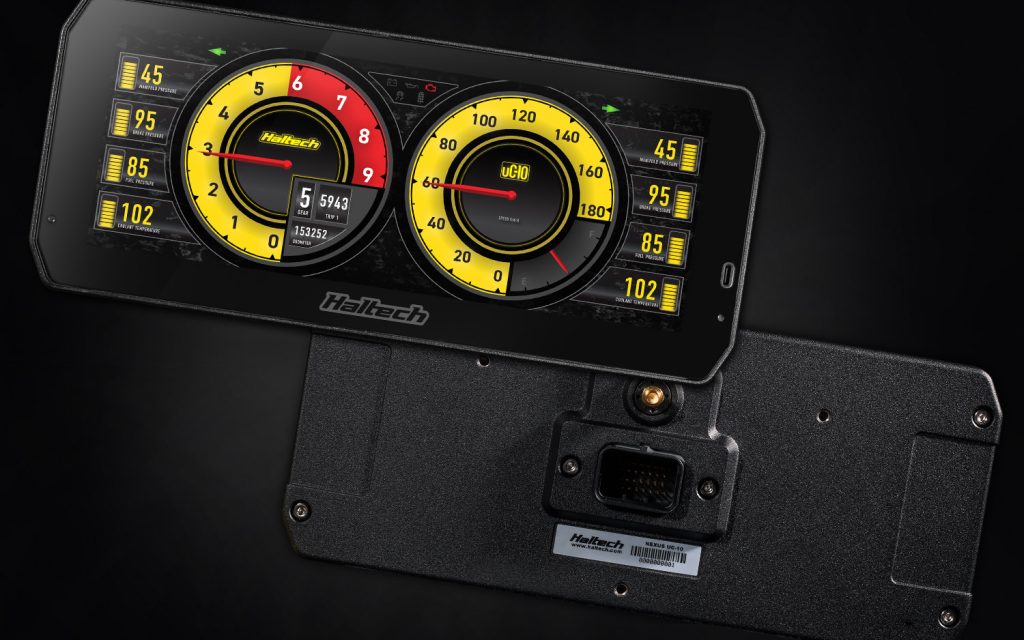

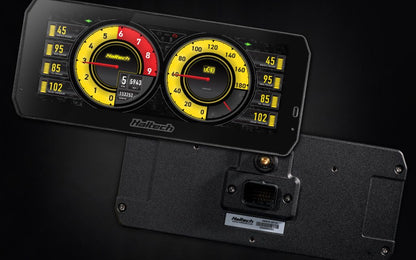

Launched at the PRI show in Indianapolis – The Haltech uC-10 dash is a classic blend of technology and style. Its 10-inch display offers ample space to monitor critical vehicle data in real-time. The full-colour TFT screen is optically bonded, ensuring crystal-clear visibility even in bright sunlight, and the sleek aluminium enclosure ensures it will look great in any vehicle.

DASH OVERVIEW
With a crisp, clear and full-color display, the all-new Haltech uC-10 Display Dash is now available for pre-order. The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups. The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.
  • Full-colour, optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution, 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

uC-10 FAQs

Does this replace the iC-7?

No, the iC-7 is here to stay!

I have an iC-7, but now I want to upgrade to a uC-10, is that possible?

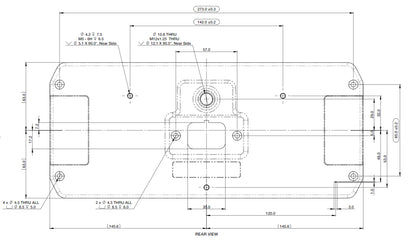

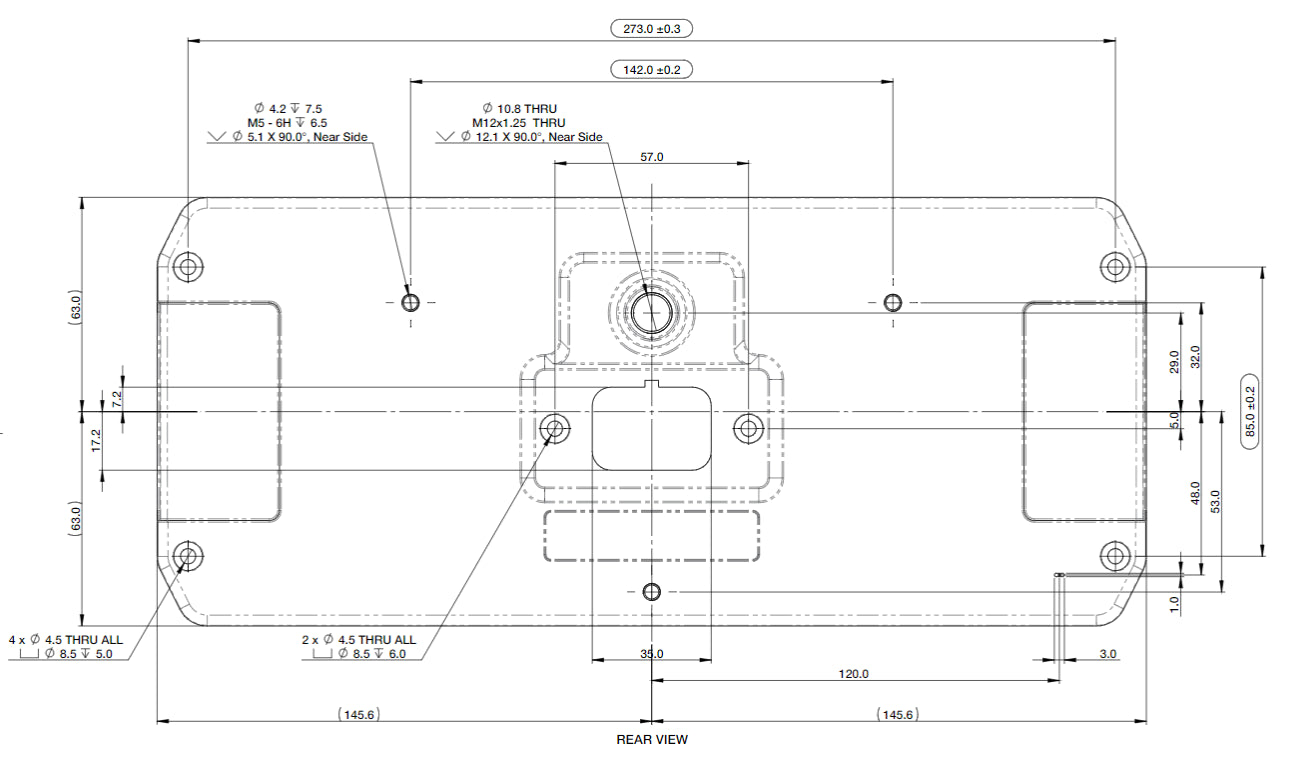

Not only is that possible, it is easy! The uC-10 has the same mounting points as the iC-7. So, the HT-060070 iC-7 Standard Dash Mount is compatible with the uC-10. The Superseal connector is the same as the iC-7, however, some re-pinning may be required, depending on your setup.

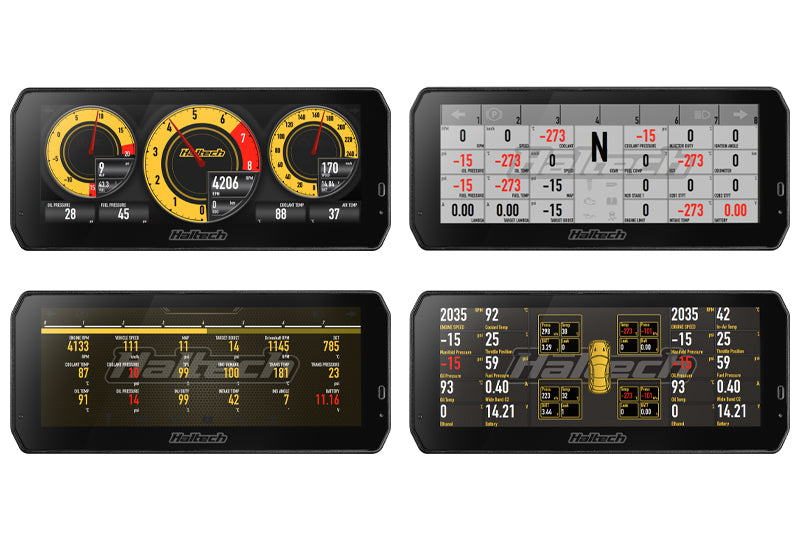

Can I customize the screen layouts?

Through the new dash section in our NSP software, you’re able to change channels and choose your colour settings on our default screens.

I see it comes with a Wi-Fi antenna in the box, does that mean it is Wi-Fi compatible?

Not yet. The uC-10 does have a Wi-Fi module in it which will become available in a future firmware update, so don’t lose your Wi-Fi antenna!

It logs data, so can it do lap timing?

No, not at the time of release.

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: 1 x Haltech uC-10 Display Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount WiFi antenna, 1 x Haltech fabric keytag, Haltech stickers
