Direct Plug-in ECUs HT-154000 Elite PRO Plug-in ECU For Ford Falcon I6 "Barra"

Direct Plug-in ECUs HT-154000 Elite PRO Plug-in ECU For Ford Falcon I6 "Barra"

$4,110.00
$4,110.00
Sale Sold out
Tax included.

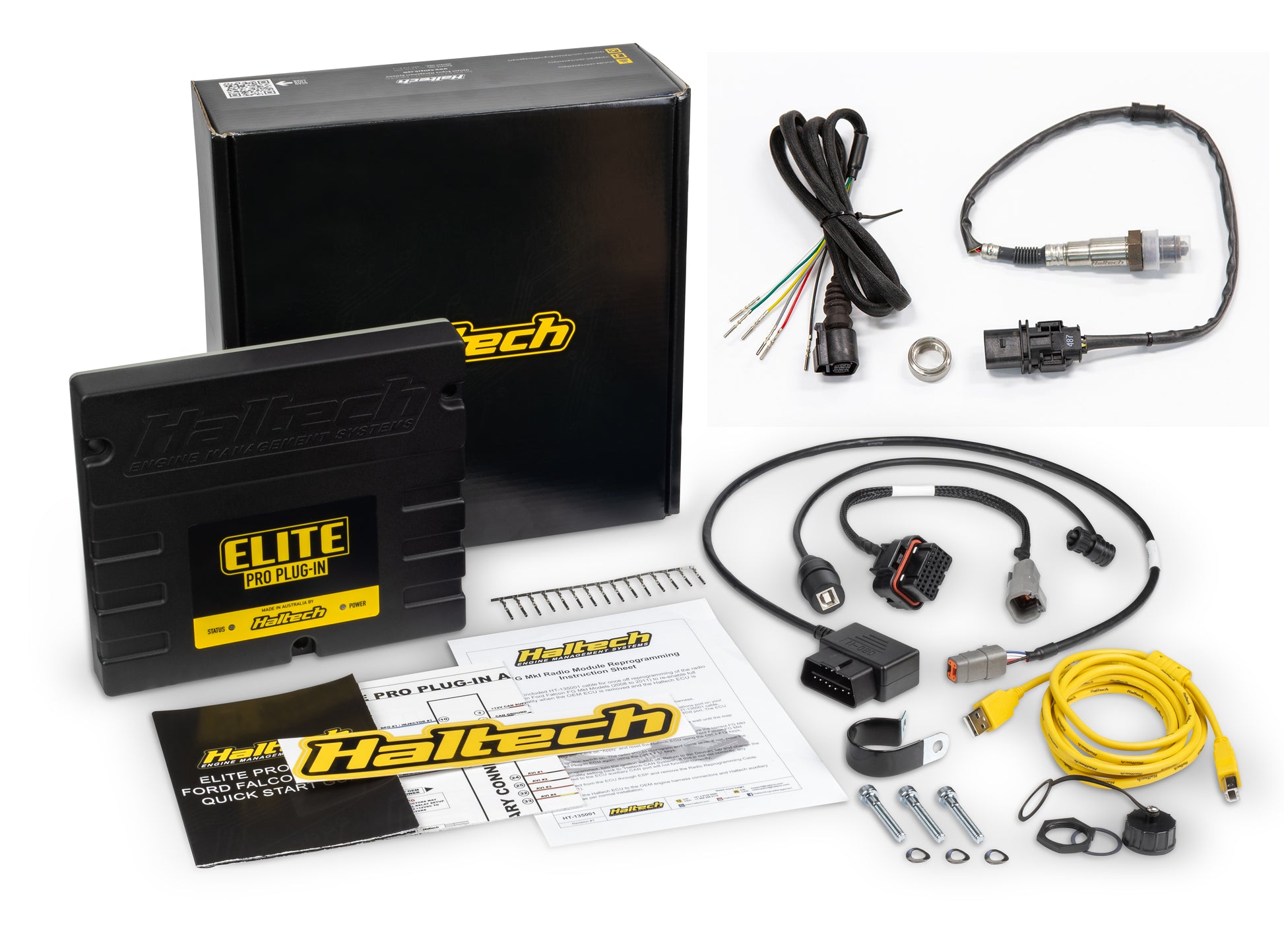

Add Wideband Kit

Suits: Ford Falcon BA (02-05), BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with manual trans. Ford Falcon BF (05-08), FG (08-14) I6 4.0L DOHC VCT Barra engine with ZF 6HP26 6-speed auto. Naturally aspirated and turbo.

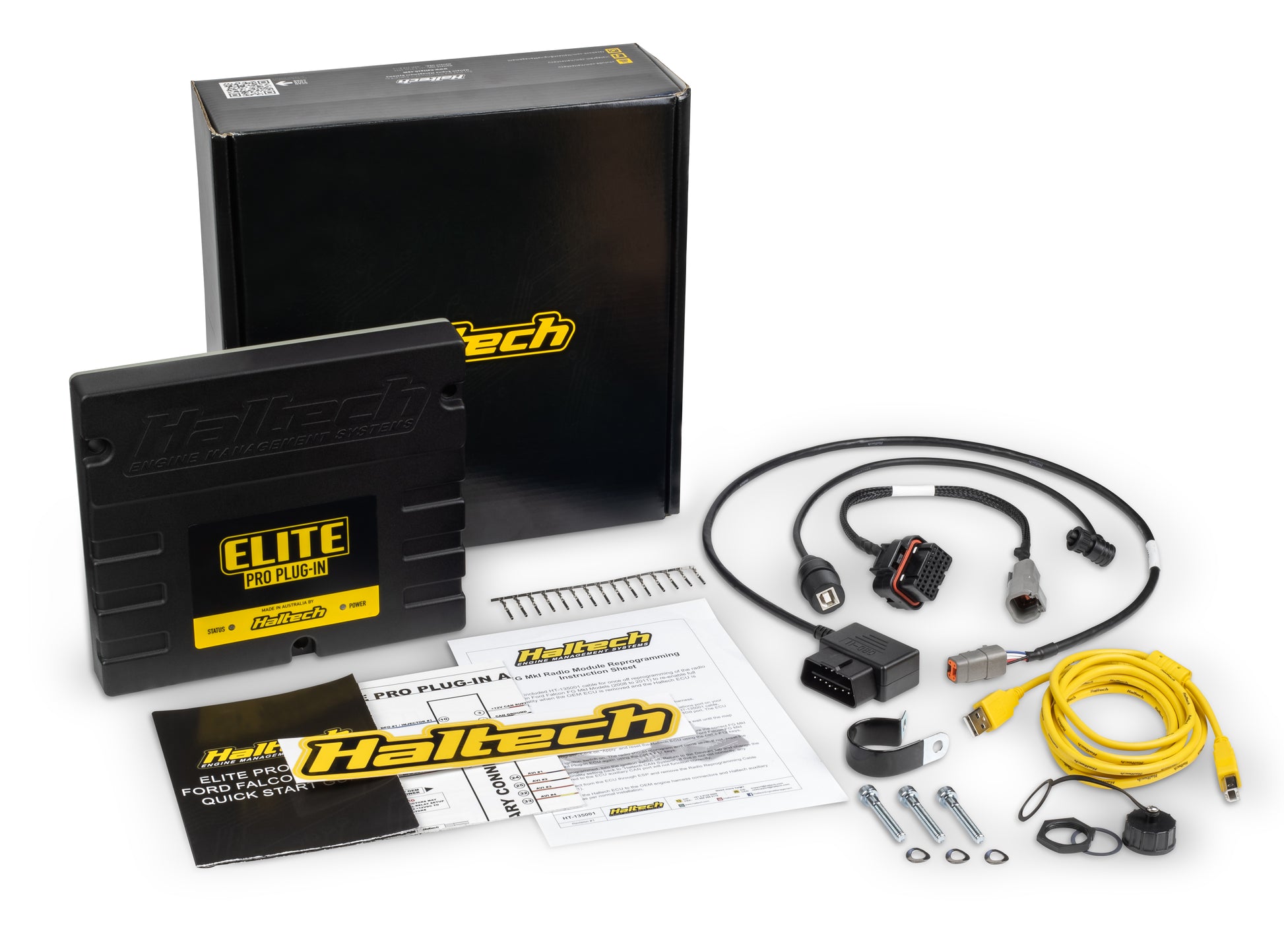

Includes: Elite PRO Plug-in ECU, 400mm (16") Waterproof (Type B) USB Connection Cable to Mini Circular with waterproof cap. Auxiliary AMP 34 Pin superseal connector with Elite CAN DTM-4 female receptacle/socket, 30 waterproofing/blanking pins and 10 spare pins to populate auxiliary I/O positions. ESP software on a USB key.

ECU OVERVIEW
Haltech's new Elite Pro Plug-in ECU offers a true Plug'n'Play upgrade option for the popular Ford Falcon BA and BF models. No messy and time-consuming re-wiring required - the Elite Pro Plug-in connects directly to the factory wiring harness and fits perfectly in the factory ECU location. With an on-board wideband controller and sophisticated race functions the Elite Pro Plug-in is one of Haltech's most advanced ECUs to date. Apart from performance-oriented features like closed loop boost control, anti-lag and launch control, short and long term learning for fuel, ignition, boost and idle, the new Elite Pro Plug-in also controls all factory functions including variable cam control, cruise control, dash cluster and even the 6-speed automatic transmission.
  • Die cast aluminium, water resistant case.
  • On-board automatic transmission control via CAN (ZF 6HP26).
  • E85 Flex Fuel ready.
  • Multi-fuel support. Petrol, Methanol and Ethanol.
  • Internal single channel wideband (supports LSU4.9 sensor).
  • Variable cam control.
  • Cruise control.
  • OBDII compatible. Set and clear diagnostic trouble codes, view live engine data.
  • Short and long term fuel, ignition, boost and idle control learning.
  • Knock control with high speed digital filtering.
  • Closed loop boost control. Tune by gear, wheel speed or time.
  • Closed loop idle control with learning for consistent idle stability.
  • Closed loop 02 control.
  • Anti-lag and launch control with drag and rally modes.
  • Multi level engine protection.
  • ESP calibration software. Intuitive and easy to use, ESP offers limitless tuning flexibility. Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections.



ECU OUTPUTS
  • 6 x current controlled injector drivers (OEM). High or Low impedance injector compatible.
  • 8 x additional injector outputs available for staged injection, unused staged injector outputs are available to be used as generic programmable DPOs.
  • 6 x ignition outputs to support OEM Ford coils directly
  • Digital pulsed outputs - as per OEM.
  • Drive By Wire (DBW) output suits any throttle body and pedal including Ford OEM.
ECU INPUTS
  • Analogue voltage inputs (AVI): as per OEM.
  • 4 x additional user definable AVIs available on the auxiliary connector.
  • Digital pulsed inputs (DPI): as per OEM.
  • 4 x additional user definable DPIs used for measuring duty cycle, frequency or state.
  • Engine position inputs: as per OEM. Supports Ford Barra trigger pattern. Alternate generic trigger support also available.
  • Knock inputs: as per OEM.
ECU COMMUNICATION
  • 2 x CAN bus communication.
  • Haltech CAN (via auxiliary connector).
  • Vehicle CAN.
  • 1 x Circular mini connector for USB programming.
ECU DATA LOGGING
  • On-board data logging. Up to 40 channels.
  • 2MB internal storage.
