B16, B18 and B20 VTEC and Non-VTEC Pro Series Crank Trigger Kit (not compatible with B20A)

It is time to move into the 21st century and say so-long to the OEM Honda distributor! Honda motors with distributors mounted at the end of the intake camshaft are notorious for ignition timing drift especially at high load, high power, high rpm and even more pronounced with valvetrain upgrades. This is often caused by a combination of timing belt stretch, belt harmonics, valve train loads and the clearance of the mechanical drive on the distributor!

5-0 Ignite is proud to release our crank trigger kit for B series DOHC VTEC and Non-VTEC application which gives unparalleled accuracy of the crank shaft position against any other cam-only based system on the market. It is a must for your rev-loving engine!

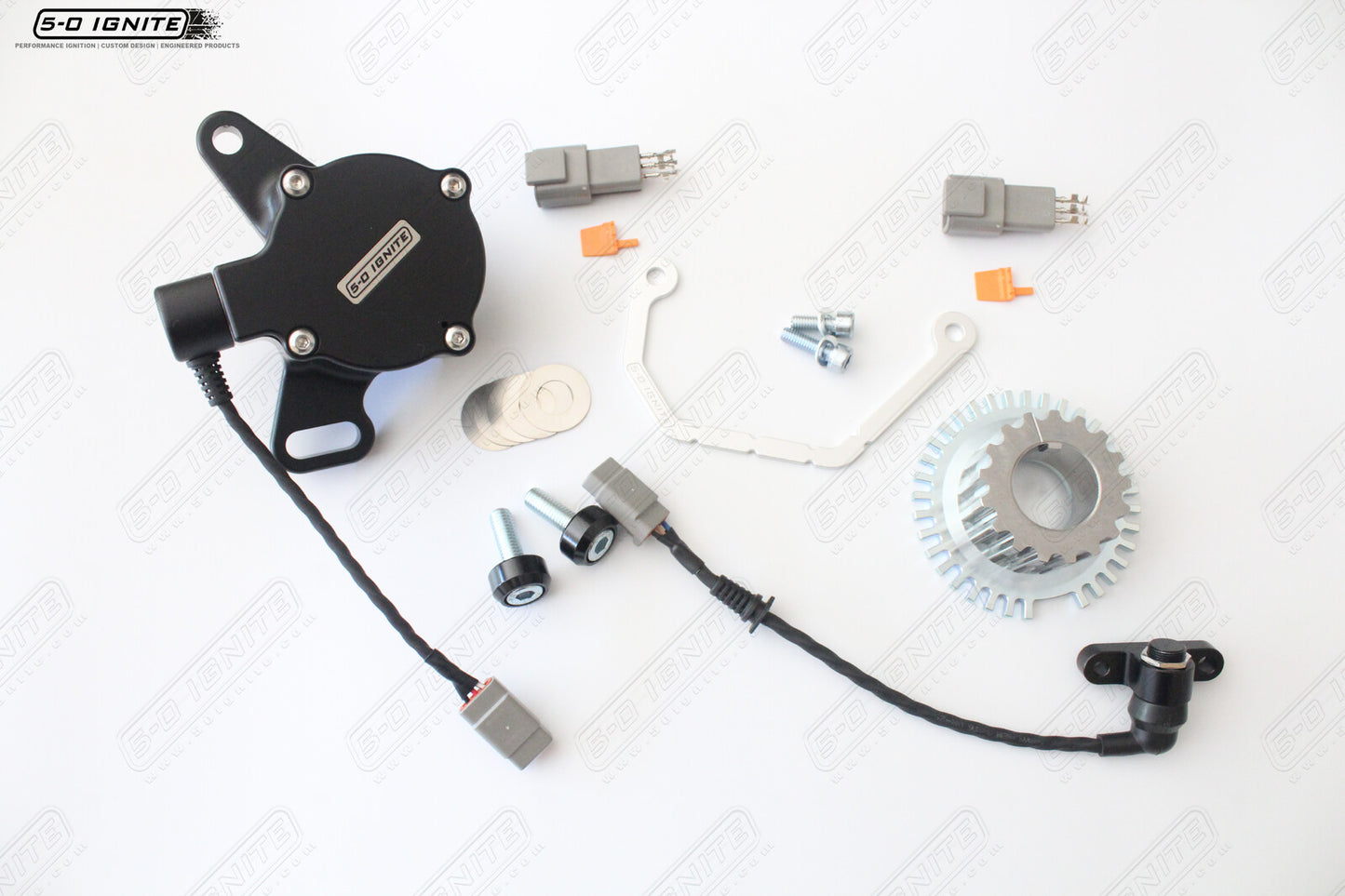

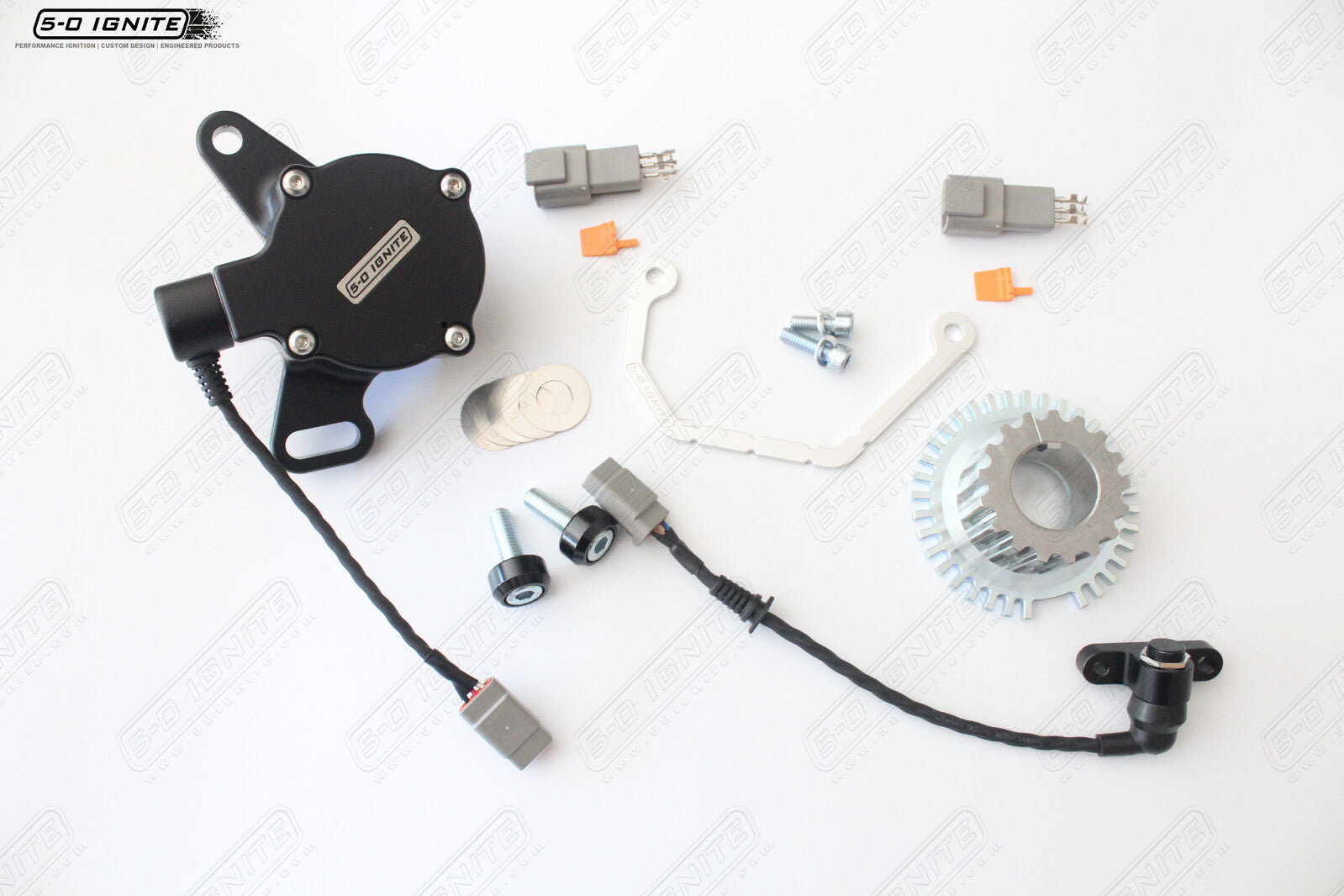

OPTION A INCLUDES:

• Full cam and crank trigger kit (cam sensor unit, replacement crank sprocket with integrated trigger teeth, crank sensor unit, wiring rail, shims, fasteners and connectors)

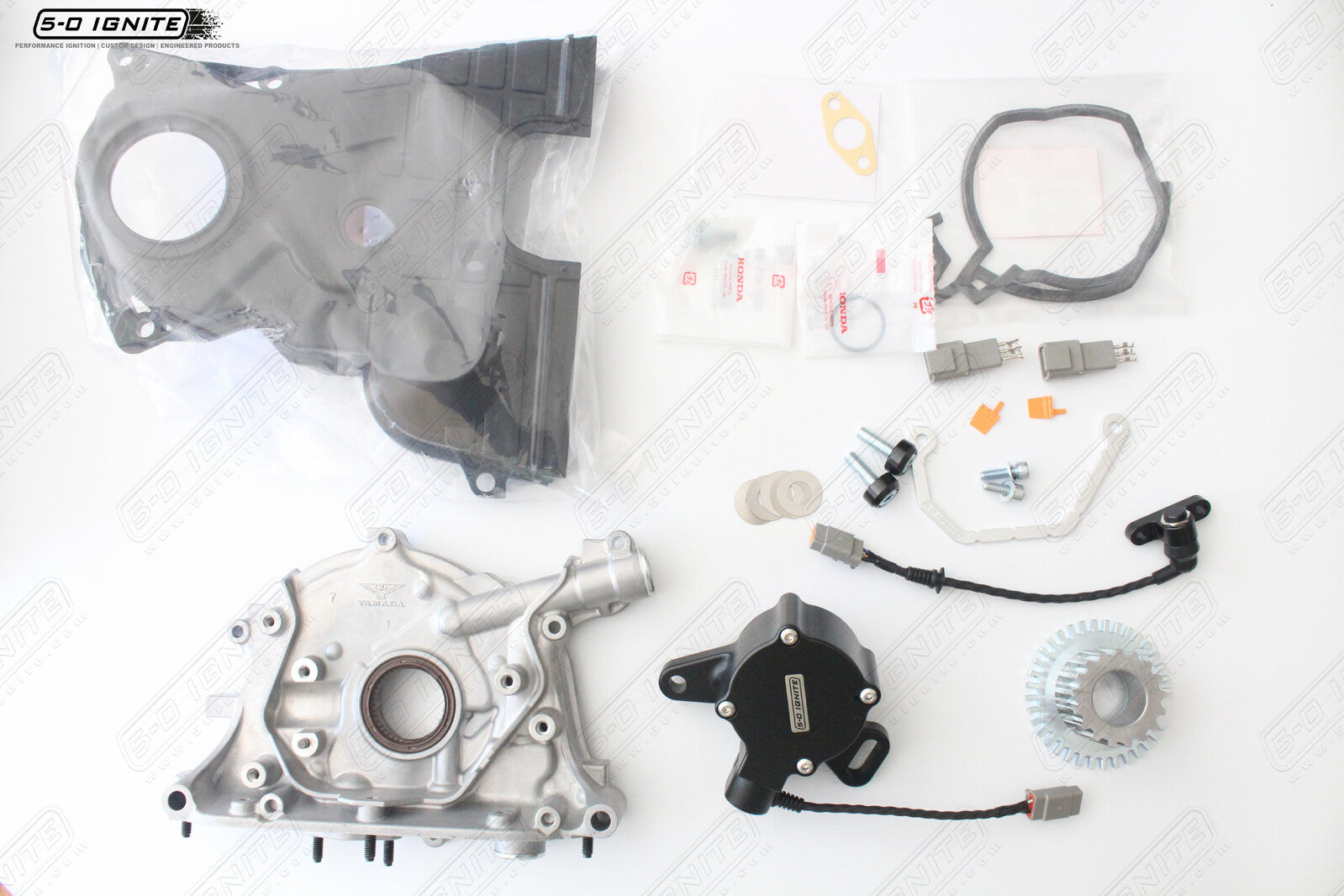

OPTION B INCLUDES:

• Full cam and crank trigger kit (cam sensor unit, replacement crank sprocket with integrated trigger teeth, crank sensor unit, wiring rail, shims, fasteners and connectors)
• OBD2 oil pump conversion parts (OEM Honda OBD2 Type R oil pump, OBD2 lower timing cover and gasket, oil pump o-ring and oil strainer gasket)

Our kit features:

✔ Unlike other B series trigger kit on the market, our kit allows you to run power steering, any cam gear you wish and retain all timing belt cover like factory without modification or cutting.

✔ Allows you to run coil on plug (COP) setup.

✔ Clean Slate ‘OEM’ Look CNC Machined Billet Aluminium 6061 Enclosed Cam Sensor Cover with Dress Up Washers. Pre-set and Ready to Install.

✔ Integrated Trigger Teeth on Supplied Crank Timing Sprocket, Zinc Plated For Corossion Resistance. Fits like OEM and Compatible with OEM and Any Aftermarket Balancer

✔ 36-2+1 Trigger Setup Compatible with most Modern/Capable Aftermarket ECU such as Haltech Elite, Link, Emtron, Motec, FuelTech etc. (regardless of OBD series)

✔ Genuine ZF Hall Effect Sensors for Both Crank and Cam Home

✔ Wiring Connectors Supplied

✔ All Installation Fasteners Supplied

✔ Full Instructions Supplied (refer to 'Installation Guide' tab above). Professional Installation is Highly Recommended.

!  It is STRONGLY recommended to power up the sensors via regulated power supply such as your ECU's 12V or 8V output.

!  You will need to transfer over the drive key from your old distributor to the cam sensor unit (2 minute job).

!  You may need to assign one ECU output to the OEM instrument cluster for RPM gauge read out.

!  You will need OEM Honda B18C USDM OBD2 Type R oil pump and the matching lower timing belt cover (refer to OPTION B). Other aftermarket oil pump (ACL etc) may have casting variance that may cause clearance issue with the trigger tooth, ensure that this is thoroughly checked upon fitment.

!  NOT Compatible with PowerFC or any ECU that utilises OEM Honda Board i.e. Hondata, Crome, Neptune etc. It is far more cost effective to run full standalone ECUs that gives you more features/tuning parameters off the box than buying an ECU that relies on 30 year old Honda board and only have to spend more to buy add-on modules for COP or trigger conversion.

Benefits includes tuner’s confidence in maximising ignition timing whilst keeping consistent engine safety margin. Suitable for all Honda B series VTEC and non-VTEC. A MUST for all valued, high revving, forced inducted or naturally aspirated B series builds!
